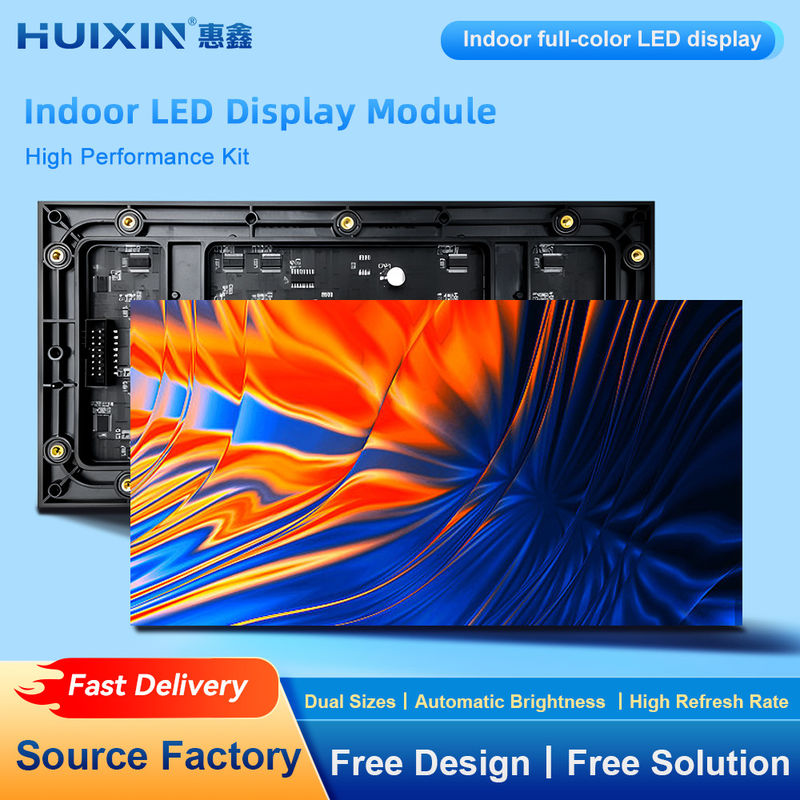

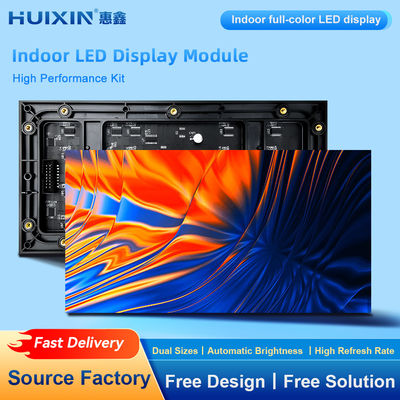

Fine Pixel Pitch P2.976 LED Module HD Full Color LED Display Video wall
Detalhes do produto:
| Place of Origin: | China |
| Marca: | Huixin |
| Certificação: | CE,FCC,Rohs,CCC,CQC,ISO9001,ISO14001 |
| Model Number: | Indoor LED Moudle |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton/Wooden Case/Flight Case |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000pcs/day |
|
Informação detalhada |
|||
| Name: | Full Color LED Display Module | Pixel Pitch (mm): | P2.976 |
|---|---|---|---|
| Module Size (mm): | 250x250 | Module Weight (kg): | 0.65 |
| White Balance Brightness (nits): | 700-800 | Color Temperature K: | 6000-9300adjustable |
| Viewing Angle (°): | 140°（W）120°（H） | Luminance Uniformity: | ≥95% |
| Contrast Ratio: | 5000：1 | Refresh Rate (hz): | ≥3840 |
Descrição de produto
| Model | DLX2.976I |
| Pixel Pitch (mm) | 2.976 |
| Pixel Structure | SMD LED 1R,1G,1B |
| Module Resolution (w*h) | 84x84 |
| Module Size (mm) | 250x250 |
| Module Weight (kg) | 0.65 |
| Unit Area (㎡) | 0.5 |
| Pixel Density (dots/㎡) | 112896 |
| White Balance Brightness (nits) | 700-800 |
| Color Temperature (K) | 6000-9300adjustable |
| Horizontal Viewing Angle (°) | ＞120 |
| Vertical Viewing Angle (°) | 140 |
| Deviation From The Center Distance Of The Luminous Point | ＜3% |
| Luminance Uniformity | ≥95% |
| Contrast Ratio | 5000:1 |
| Peak Power Consumption (w/㎡) | 800 |
| Average Power Consumption (w/㎡) | 300 |
| Single Mode Group Current (A) | 400 |
| Power Supply Requirements (V) | 160 |
| Drive Mode | constant current |
| Frame Switching Frequency (hz) | 50/60 |
| Refresh Rate (hz) | ≥3840 |
| Typical Lifespan Value (hours) | 100,000 |
| Working Temperature Range (℃) | -20~80 |
| Storage Temperature Range (℃) | -20~50 |
| Working Humidity Range (rh) | 10-70%No freeze |
| Storage Humidity Range (rh) | 10-75%No freeze |
P3.91 HD Fine Pixel Pitch Full-Color Indoor LED Screen Module Series

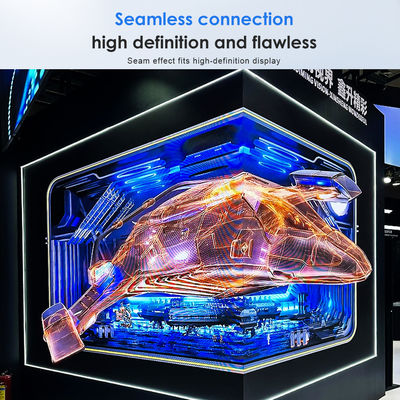

- Huixin Fine Pixel Indoor LED Module Series is a new generation of indoor high-end small-pitch HD screen. The 4K LED screen adopts all-in-one high-strength frame design, high-precision seamless splicing cabinet, excellent color uniformity and ultra-high image contrast to realize subversive visual innovation.

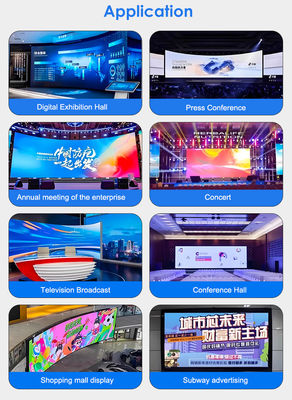

- Fine Pixel Indoor LED Module Series 4K LED display panel adopts a new common-cathode drive, which has lower power consumption, lower heat generation, longer service life, front/rear maintenance features, etc. It's widely used in high-end retail, shopping malls, outdoor traffic advertising, experience events, high-end hotels and other occasions.
- Fine Pitch LED Display Modules are cutting-edge display solutions that offer a host of advanced features, making them ideal for a wide range of applications
- Fine Pitch LED Display Modules offer a combination of high resolution, seamless design, enhanced viewing experience, energy efficiency, and durability. These features make them a superior choice for a wide range of applications, from corporate settings to entertainment venues.
